Diesel Injector Puller / Small Slide Hammer / Seat Reamer / Copper Washer
DM21-1905KIT-SRC-R
Save up to 75% on the price of this tool
CLICK TO RENT

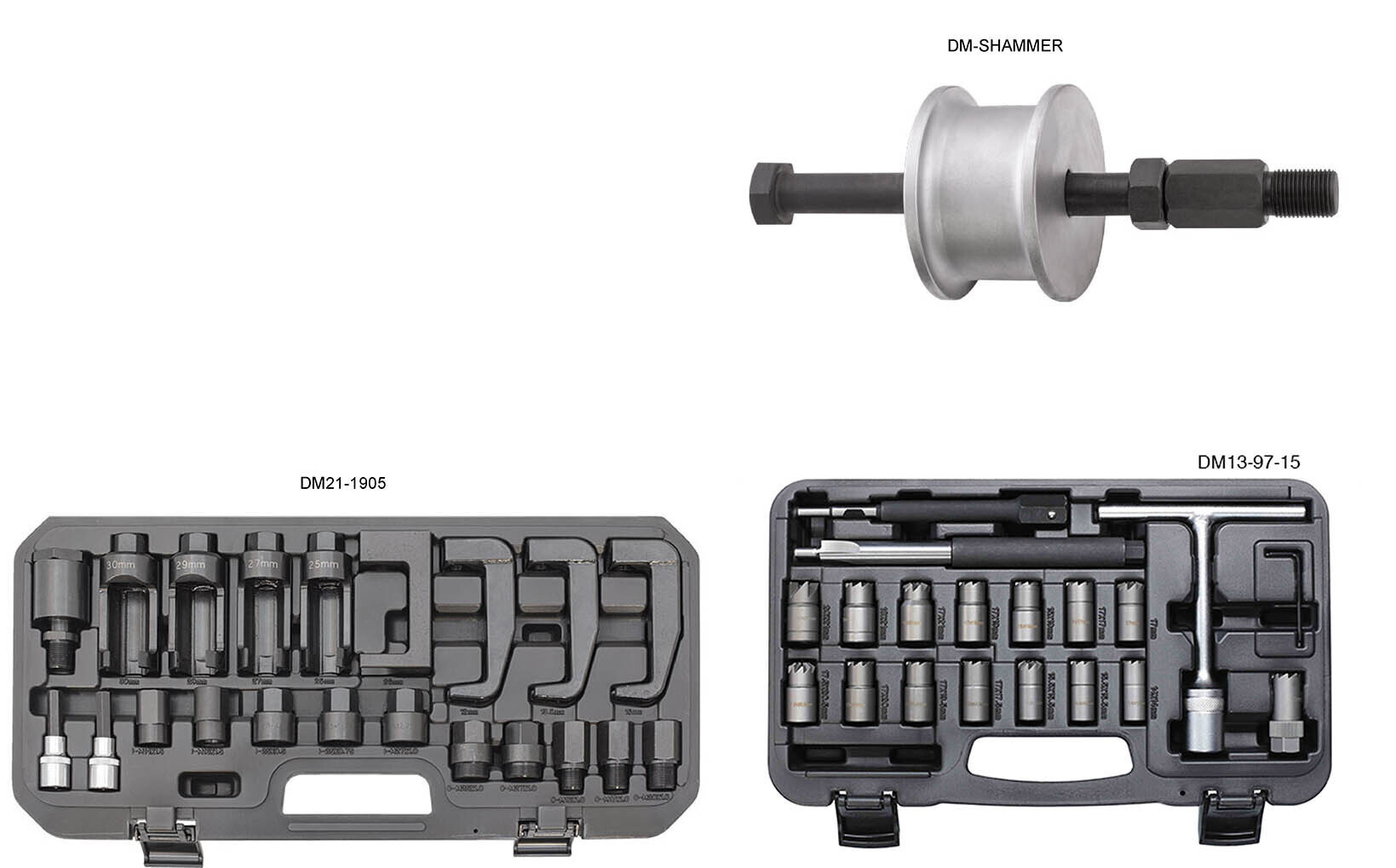

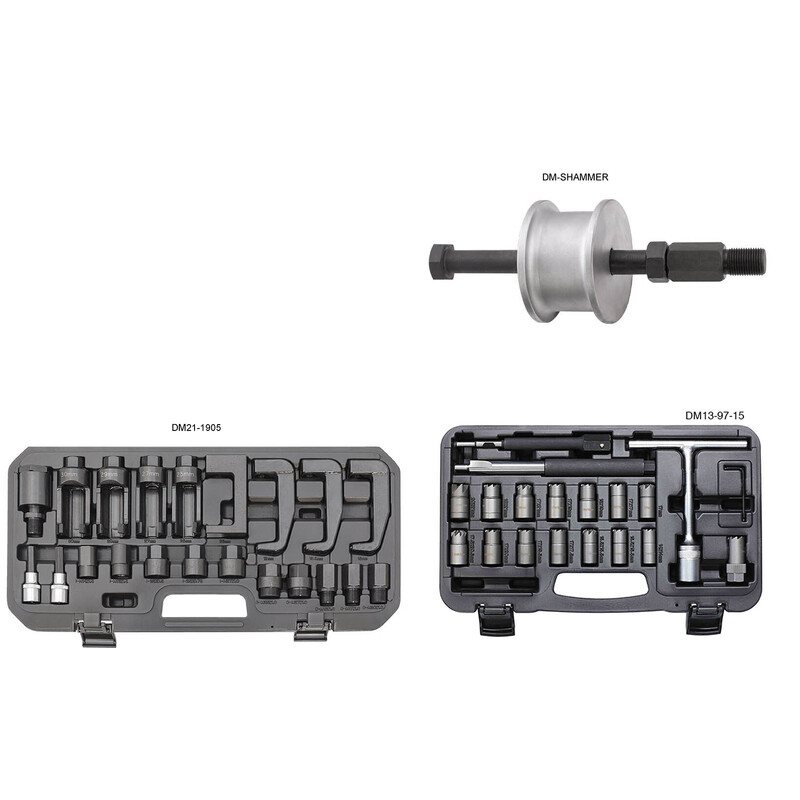

The combo includes:
Universal tool kit for disassembling the injector and for preparing the removal of the injector.
Suits a huge range of vehicles Including Mercedes Benz, BMW, VW, Audi, VAG, Volvo, Ford, and Mazda plus many more.
Contents:
- Special bit insert Hex: 7.6mm / 6.6mm
- Pull Spindle: OT-M14x1.5mm / OT-M16x1.5mm / OT-M25x0.5mm / OT-M25x0.75mm / OT-M27x1mm
IT-M16x1.0mm / IT-M17x1.0mm / IT-M20x1.0mm / IT-M25x1.0mm / IT-M27x1.0mm
- Universal joint: M18x1.5mm
- Special socket insert: 27mm / 28mm / 29mm / 30mm (Hex)
- Injector Gripper hook: 12mm / 13.5mm / 16mm / 26mm
Small slide hammer Can be used for various applications.
Universal Diesel Injector Seat Cutter Cleaner and Reamer Set Kit
Set of 19 cutters for re-cutting injector seats. This set helps to avoid blow back due to poorly seated injectors. The set ensures that the injector seat is bored to the exact dimension when replacing or reconditioning the diesel injectors.
Later model vehicles are housing more narrow injectors these days and earlier kits may not have small enough reamers to
fit down the injector ports. This kit is the latest on the market containing various cutters for nearly all diesel vehicles.
The set contains:
Reamer Angled: 17mm
Reamer Flat: 17 x 17mm
Reamer Flat: 15 x 19mm
Reamer Flat: 17 x 19mm
Reamer Angled: 17 x 21mm
Reamer: 18 x 21mm
Reamer: 20 x 21mm
Reamer Long: 15.5
Reamer Flat: 14 x 14mm
Reamer Angled: 15.5 x 15.5mm
Reamer Flat: 15.5 x 15.5mm
Reamer Flat: 17 x 17.5mm
Reamer Flat: 17 x 19.5mm
Reamer Flat: 17 x 20mm
Reamer Angled: 17.5 x 20.5mm
Reamer Injector: 19mm
Pilot Post
T-Handle
Hex Key
Designed for easy removal of the copper washer seal at the base of the injector commonly found on diesel vehicles.
Uses a screw thread and expanding jaw.
Size: 7mm ID
230mm Long
(DM21-1905KIT-SRC-R)
SKU | DM21-1905KIT-SRC-R |
Brand | OzwideTools |
Shipping Weight | 10.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.135m |
Shipping Length | 0.500m |
