This is a truly portable, 12 volt DC powered unit, incorporating its own internal air pump with the ability to also connect to shop air OR a CO2 source for safely testing EVAP systems.

It incorporates a low-pressure gauge and flow metre for testing EVAP systems etc in the 5 to 8 KPa range.

A high-pressure gauge and flow metre for testing induction systems, exhaust systems, cooling systems etc in the 0.8 to 1.2 Bar range and a HD range from 2 to 8 Bar to test high pressure
systems such as air suspension or combustion chambers.
It gives you essentially three pressure ranges, fully adjustable for pressure and flow.

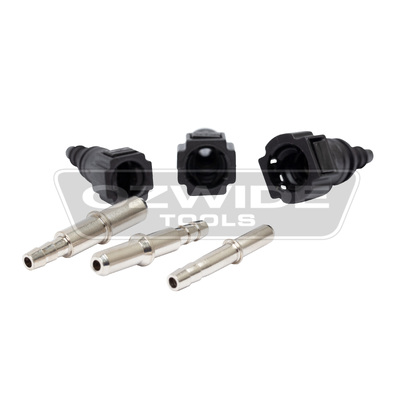

The machine can be used with or without smoke depending on what you are testing and comes with a range of accessories to enable connection to the vehicle.

This is a truly versatile, well-built machine and enables leak detection not just in engine systems but is also great for tracking down wind and water leaks in doors, sunroofs, light assemblies and many more applications.

The smoke leak detector is an essential tool for drivability diagnosis in today’s modern workshop and this machine really packs a punch with its versatility and range of functions.
If you have been holding out from purchasing a smoke machine, waiting for the right one to cover all your needs or you simply want to update your old machine, this is the machine for you!

Air Flow:1-25 L/Min
Oil Volume:30ML
Oil Consumption:0.5 ML/Min
EVAP:5~8 KPa
TURBO setting: 0.8~1.20 Bar
HD Setting: 2-8 Bar
Test Hose Length:2.5 M
Voltage:12v vehicle power supply
Current:6A
